Vibration Switch

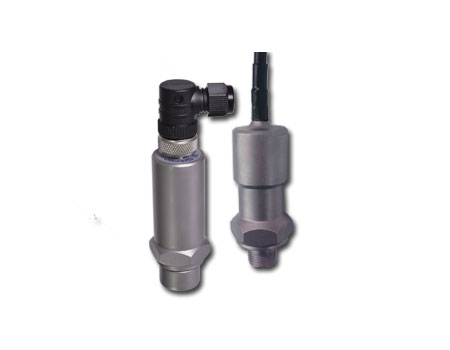

The SV42 is a compact and robust vibration sensor used to monitor and detect misalignment or imbalance of fans, centrifuges, compressors, generators and motors, preventing wear and tear of components before they become severe. It can be installed either horizontally or vertically through Magnetic Base or Threaded Base.
The sensor measures the mechanical vibration velocity in the 10, 25 and 50mm / s RMS bands on a non-rotating surface and converts to a 4 ... 20mA (2-wire) proportional signal with optimum accuracy and stability even when applied to large equipment.
Application: Identify Imbalance in Industrial Equipment
Food: 10 ... 30Vdc
Consumption: Max 22mA
Signal Output: 4 ... 20mA (2 wires)
Insulation: 500V (RMS) between circuit and enclosure
Accuracy / Stability / Linearity: error of 0.5%
Measuring Range: 10, 20, 25, 50 mm / s RMS (others on request)
Protections: Polarity Inversion / Electromagnetic Interference / Electrical Surges
Operating Temperature: -10 ... 70 ° C
Degree of Protection (IEC 60529): IP67
