Pressure

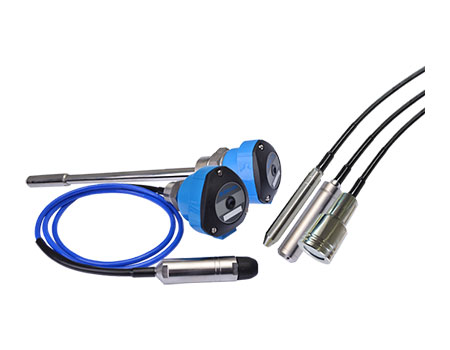

Hydrostatic Pressure Transmitter

The Lh series of hydrostatic pressure transmitters and level is designed for measuring the pressure of liquids in a variety of industrial processes. Each model offers excellent stability, repeatability and accuracy with temperature and atmospheric compensation. Output options include 4-20mA, 1-5volts, 1-10volts and HART communication protocol.
:
  • The LH840 has a piezo resistive body and sensor in 316 stainless steel, polypropylene cable with ventilation capillary and pressure ranges from 0 ... 1Bar up to 600Bar.
  • The LH840S features narrow body with 5/8 "(18.5mm) and resistive piezo sensor in 316 stainless steel, polypropylene cable with venting capillary and pressure ranges from 0 ... 1Bar up to 600Bar
  • The LH850 has a piezo resistive body and sensor in 316 stainless steel, polypropylene cable with venting capillary and pressure ranges from 0 ... 1Bar up to 600Bar.
  • The LH860 has a sensor with a thin layer of resistive piezo ceramic, 316 stainless steel or PVC body and polypropylene cable with ventilation capillary and pressure ranges from 0 ... 1Bar up to 600Bar
  • The LH840C features a sensor with a thick layer of resistive piezo ceramic, 316 stainless steel or PVC body and polypropylene cable with ventilation capillary and 0 ... 1bar to 300bar ranges and optional HART protocol.
  • The LH842 features Zero and Span adjustment, body and resistive piezo sensor in 316 Stainless Steel and pressure ranges from 0 ... 1Bar to 300Bar and optional HART protocol.
  • The LH842C features Zero and Span adjustment, sensor with a thick layer of resistive piezo ceramic, 316 stainless steel body and pressure ranges from 0 ... 1Bar to 300Bar and optional HART protocol.
Application: Level measurement for liquids
Food: 12 ... 30Vdc
Consumption: Max 22mA
Output: 4 ... 20mA (2 wire) with HART Communication Protocol (optional)
Accuracy / Stability / Linearity: Max error of 0.5%
Sensor Type: Capacitive and Piezoresistive Ceramic / 316 Piezoresistive Stainless Steel
Measuring ranges: Ceramic Capacitive: 0 to 40 Bar (Cable) / 0 to 0.3 Bar (Rod), Piezoresistive: 0 to 60 Bar / Stainless Steel: 0 to 60 Bar
Electrical Connection: LH842: 1/2 "NPT cable gland or M12 / LH840 connector: 2-way polyethylene cable with breather
Process Connection: LH842: BSP or NPT, Flange and Sanitary with rigid rod or Cable / LH840: Polyethylene cable with mesh and breather
Body Material: Stainless Steel 316
Protection class: IP68 (IEC 60529)
